Water Volume: Tank & Pipeline Engineering Reference

Calculate water volumes for hydrostatic testing, tank gauging, and pipeline operations per API 650, ASME B31.4, and B31.8 standards.

Launch Calculator Volume Formulas

Water density

62.37 lb/ft³

At 60°F per API MPMS 11.1

Conversion

7.48 gal/ft³

1 barrel = 42 gallons

Hydrotest

1.25× MAOP

ASME B31.4 liquid pipelines

Contents

Use this guide when:

  • Planning hydrostatic test water requirements
  • Calculating tank inventory volumes
  • Sizing water trucks for operations
  • Converting between volume units

1. Overview

Water volume calculations are essential for pipeline hydrotesting, tank gauging, and operational planning. Accurate volumes ensure proper test pressures, adequate water supply, and correct inventory measurements.

Hydrotesting

Pipeline integrity

ASME B31.4/B31.8 require hydrostatic testing to verify pipeline strength.

Tank gauging

Inventory control

API 2550 strapping tables convert tank level to volume.

Operations

Logistics planning

Water truck loads, disposal volumes, and storage sizing.

Water Properties at 60°F

Property Value Reference
Density 62.37 lb/ft³ API MPMS 11.1
Specific gravity 0.999 Relative to 4°C water
Weight per gallon 8.34 lb/gal US gallon
Weight per barrel 350 lb/bbl 42-gallon oil barrel

2. Volume Formulas

Pipeline Volume

Pipeline internal volume is calculated as a simple cylinder using the inside diameter.

Pipeline Volume Formula: V = π × (D/24)² × L Where: V = Volume (ft³) D = Inside diameter (inches) L = Length (feet) 24 = Converts diameter in inches to radius in feet (D/2/12) In gallons: V_gal = V × 7.48052 In barrels: V_bbl = V × 0.1781 Example - 12" pipeline, 1 mile (5,280 ft): V = π × (12/24)² × 5,280 V = 3.1416 × 0.25 × 5,280 = 4,147 ft³ V_gal = 4,147 × 7.48 = 31,020 gallons V_bbl = 4,147 × 0.1781 = 739 barrels Weight = 4,147 × 62.37 = 258,668 lbs

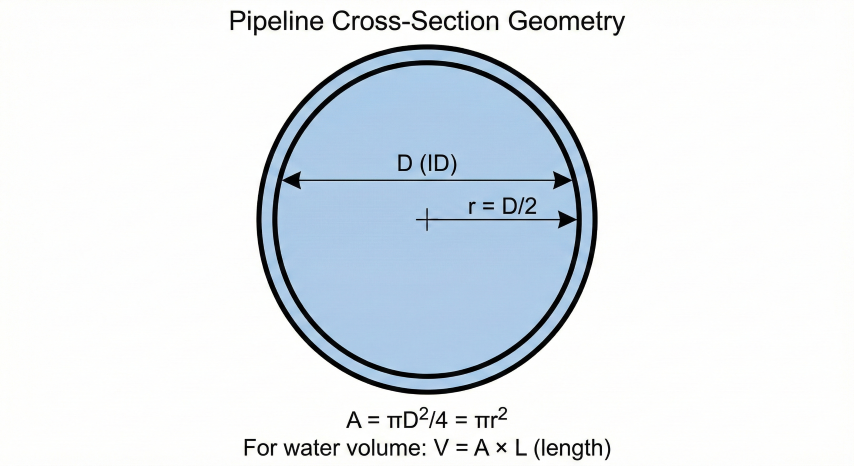

Pipeline circular cross-section diagram showing inside diameter D with dimension arrows, radius r labeled from center to wall, internal flow area shaded in blue, and area formula A equals pi D squared over 4
Pipeline cross-section geometry showing diameter, radius, and internal flow area for volume calculations.

Vertical Cylindrical Tank

Vertical tanks (API 650) use the same cylinder formula, with liquid height determining partial fill volume.

Vertical Tank Volume: V = π × r² × h Where: r = Tank radius (ft) = diameter / 2 h = Liquid height (ft) Total capacity uses full tank height. Working capacity excludes freeboard (6-12") and heel. Example - 20 ft diameter × 30 ft tall: r = 10 ft V_total = π × 10² × 30 = 9,425 ft³ = 70,500 gal = 1,679 bbl With 2 ft freeboard + 1 ft heel: V_working = π × 10² × 27 = 8,483 ft³ = 63,450 gal

Horizontal Cylindrical Tank (Partial Fill)

Horizontal tanks require the circular segment formula for partial fill calculations. This is the standard method per API 2550.

Horizontal Tank Partial Fill Formula: For liquid height h from bottom of tank: θ = 2 × arccos((r - h) / r) [central angle in radians] A = (r²/2) × (θ - sin(θ)) [circular segment area] V = A × L [volume = area × length] Where: r = Tank radius (ft) h = Liquid height from bottom (ft) L = Tank length (ft) Special cases: Half full (h = r): V = π × r² × L / 2 Full (h = 2r): V = π × r² × L Example - 10 ft diameter × 40 ft long, 6 ft liquid level: r = 5 ft, h = 6 ft, L = 40 ft θ = 2 × arccos((5-6)/5) = 2 × arccos(-0.2) = 2 × 1.7722 = 3.544 rad A = (25/2) × (3.544 - sin(3.544)) = 12.5 × (3.544 - (-0.392)) = 49.2 ft² V = 49.2 × 40 = 1,968 ft³ = 14,721 gal = 350 bbl (62.6% full)
Horizontal cylindrical tank partial fill geometry diagram showing circular cross-section with radius r, liquid height h from tank bottom, central angle theta, circular segment area shaded in blue representing liquid volume, chord width formula, and segment area calculation
Horizontal tank partial fill geometry showing radius, liquid height, central angle, and circular segment area for volume calculation.

Rectangular Tank

Rectangular Tank Volume: V = L × W × h Where: L = Length (ft) W = Width (ft) h = Liquid height (ft) Example - 40 ft × 20 ft × 10 ft tank at 8 ft level: V = 40 × 20 × 8 = 6,400 ft³ = 47,875 gal = 1,140 bbl Percent full = 8/10 = 80%

3. Unit Conversions

Volume Unit Conversions

From To Gallons To Barrels To ft³ To Liters
1 Gallon 1 0.02381 0.1337 3.785
1 Barrel 42 1 5.615 159.0
1 ft³ 7.481 0.1781 1 28.32
1 m³ 264.2 6.290 35.31 1,000

Pipeline Volume per Unit Length

Quick reference for common pipe sizes (standard wall):

NPS (in) ID (in) gal/ft bbl/mile lb water/ft
4 4.026 0.661 83 5.5
6 6.065 1.501 189 12.5
8 7.981 2.599 327 21.7
10 10.020 4.098 515 34.2
12 12.000 5.875 739 49.0
16 15.000 9.180 1,154 76.6
20 19.000 14.73 1,852 122.9
24 23.000 21.59 2,715 180.1
30 29.000 34.31 4,314 286.2
36 35.000 49.98 6,285 416.9
Water truck capacity: Standard water trucks hold 110-130 barrels (4,620-5,460 gallons). For hydrotest planning, divide total volume by 130 bbl to estimate truck loads required.

4. Hydrostatic Testing

Hydrostatic testing verifies pipeline integrity by pressurizing with water. Requirements vary by code and class location.

Test Pressure Requirements

Code Application Test Pressure Duration
ASME B31.4 Liquid pipelines 1.25 × MAOP 4 hours minimum
ASME B31.8 Class 1 Gas, rural areas 1.1 × MAOP 8 hours
ASME B31.8 Class 2 Gas, suburban 1.25 × MAOP 8 hours
ASME B31.8 Class 3-4 Gas, urban/HCA 1.4-1.5 × MAOP 8 hours
API 1104 Weld qualification Per design spec Per procedure

Water Volume Planning

Hydrotest Water Requirements: Total water needed = Fill volume + Test makeup + Purge volume Fill volume: Calculated pipeline volume (use calculator) Test makeup: 1-3% for compression and leak testing Purge volume: 2-3× pipeline volume for post-test purging Rule of thumb: Plan for 1.5× pipeline volume total water availability Elevation considerations: Head pressure = 0.433 psi/ft × elevation change (water) For hilly terrain: P_test (low point) = P_test (specified) + (0.433 × Δh) May exceed pipe rating - consider segmented tests

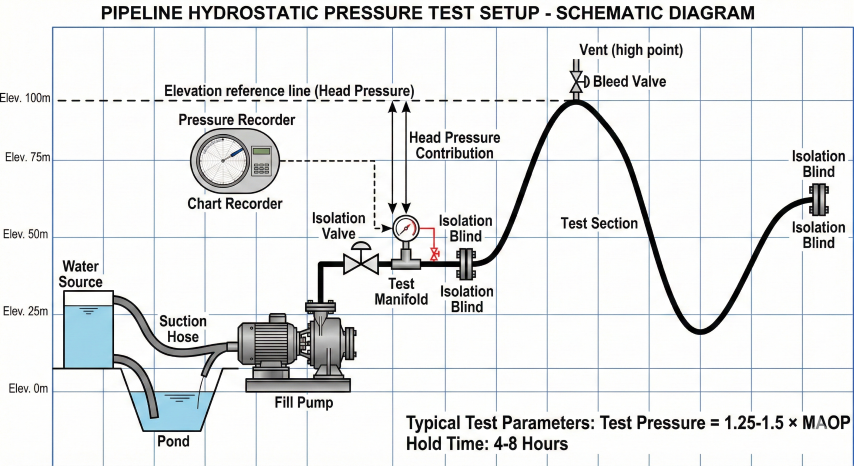

Pipeline hydrostatic test setup schematic showing water source tank, high-pressure fill pump, test manifold with isolation valve and pressure gauge, test section with blind flanges at both ends following terrain elevation changes, vent valve at high point, and pressure recorder
Hydrostatic pressure test configuration showing water source, fill equipment, test section with isolation, and elevation profile affecting head pressure.

Water Quality Requirements

  • Chlorides: < 50 ppm to prevent stress corrosion cracking (austenitic stainless)
  • Dissolved oxygen: < 1 ppm preferred, or add oxygen scavenger
  • pH: 6.5-8.5 neutral range
  • Bacteria: Biocide treatment for extended holds (> 7 days)
  • Temperature: Above freezing, below 120°F
Post-test considerations: Water must be disposed properly. Options include evaporation ponds, injection wells (UIC Class II), municipal treatment (if clean), or trucking to disposal facility. Document water quality and disposal method.

5. Practical Examples

Example 1: Pipeline Hydrotest Planning

Given: - 16" NPS pipeline, 0.375" wall (ID = 15.25") - Length: 15 miles - MAOP: 1,000 psig - Terrain: 200 ft elevation gain Calculate water requirements: 1. Pipeline volume: V = π × (15.25/24)² × (15 × 5,280) V = 3.1416 × 0.4038 × 79,200 = 100,451 ft³ V = 751,400 gal = 17,891 bbl 2. Truck loads required: 17,891 bbl ÷ 130 bbl/truck = 138 truck loads 3. Water weight: 100,451 ft³ × 62.37 lb/ft³ = 6,265,100 lbs = 3,133 tons 4. Head pressure at low point: ΔP = 0.433 × 200 ft = 87 psi additional 5. Test pressure: P_test = 1.25 × 1,000 = 1,250 psig (high point) P_test = 1,250 + 87 = 1,337 psig (low point) 6. Total water planning: Fill + margin = 17,891 × 1.5 = 26,837 bbl available Plan for 207 truck loads

Example 2: Tank Inventory Calculation

Given: - Horizontal tank: 10 ft diameter × 30 ft long - Gauge reading: 7.5 ft liquid level Calculate volume: 1. Tank parameters: r = 5 ft, L = 30 ft, h = 7.5 ft 2. Central angle: θ = 2 × arccos((5-7.5)/5) = 2 × arccos(-0.5) θ = 2 × 2.094 = 4.189 radians 3. Segment area: A = (25/2) × (4.189 - sin(4.189)) A = 12.5 × (4.189 - (-0.866)) = 63.2 ft² 4. Volume: V = 63.2 × 30 = 1,896 ft³ = 14,180 gal = 338 bbl 5. Percent full: Full capacity = π × 25 × 30 = 2,356 ft³ Percent = 1,896/2,356 = 80.5%

Standard Tank Capacities (API 650)

Diameter (ft) Height (ft) Capacity (bbl) Capacity (gal)
10 16 224 9,408
15 24 751 31,542
20 32 1,498 62,916
30 40 4,209 176,778
50 48 14,027 589,134
Common pitfalls: (1) Using OD instead of ID for pipe volume - can cause 10%+ error. (2) Forgetting elevation effects on test pressure. (3) Underestimating water needs - plan for 1.5× fill volume. (4) Not accounting for freeboard/heel in tank working capacity.

Ready to use the calculator?

→ Launch Calculator

Frequently Asked Questions

How do you calculate the water volume in a pipeline for hydrostatic testing?

Pipeline volume equals π/4 × D² × L, where D is the inside diameter and L is the length. Convert to gallons using 7.48 gal/ft³. Hydrostatic test pressure is typically 1.25 times MAOP per ASME B31.8.

What is the standard water density used in pipeline volume calculations?

Water density at standard conditions (60°F) is 62.4 lb/ft³ or 8.34 lb/gal. One cubic foot of water equals 7.48 gallons, and one barrel equals 42 US gallons or 5.615 ft³.

How do you calculate partial fill volume in a horizontal cylindrical tank?

For a horizontal tank partially filled to height h with radius r, the cross-sectional area of liquid uses the segment formula involving the inverse cosine function. The liquid volume equals the segment area multiplied by the tank length.
